Induction Thrust Fan
- Low profile solution to optimise installation space requirements
- Performance: 50N
- 2 Speed motors (Invertor controllable in standard ambient conditions)
- Integrated mounting feet
- High temperature isolator
- Inlet guard and outlet nozzle
- Super low profile
- High thrust
- CFD simulation in our Centre of Excellence based in Colchester

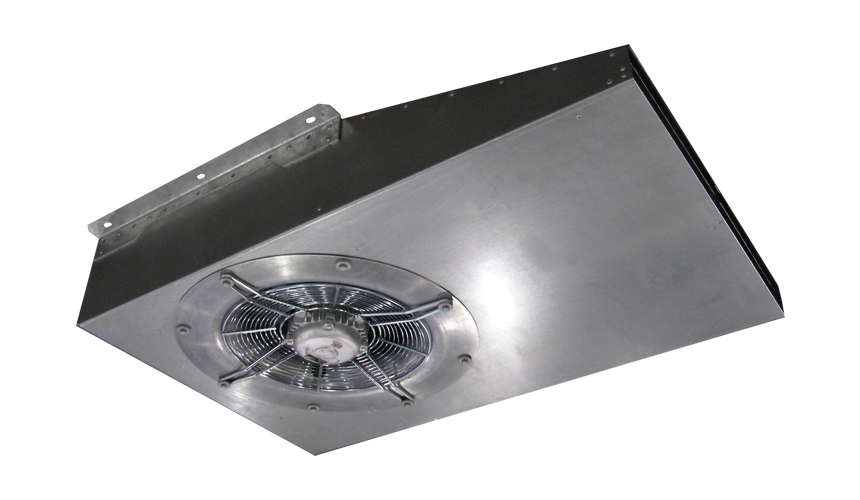

The Induction Thrust Fan is the super low profile product of the Woods range of Thrust Fans. The unit comprises of a centrifugal fan with factory fitted inlet bell mouth; guard as well as a nozzle-type discharge to precisely control the air jet. These units also have some of the largest thrust values available in the Woods product range. High temperature requirements can be met at 200°C or 392°F for times up to 2 hours. The unit comes as standard with an isolator whilst it is possible to fit a terminal box. These Thrust Fans come in a standard, galvanized finish; however they can be painted to any RAL color required by the project.
Product SelectionDocuments
A list of relevant literature, operation and installation manuals for this product.
