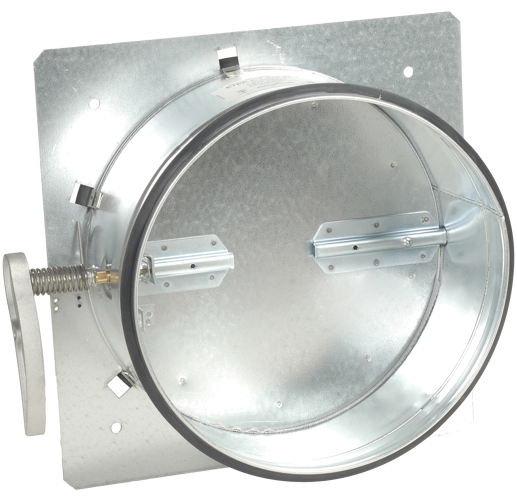

ETPR Fire Damper

  • CE-marked according to EN 15650
  • Fire class EI 60 S
  • Flange fire damper for on the wall/floor or remote of construction installations
  • Fire tested according to EN 1366-2
  • Sizes from 100 to 630 mm
  • Fire dampers casing meets the requirements of leakage class C according to EN 1751
  • Closed fire damper meets the requirements of leakage class 3 according to EN 1751
an adjustable metal damper

Quick & easy to install

CE-marked EI 60 S fire damper with easiest and quickest installation
  • Highest quality of installation with flange
  • Easy function testing and integrated microswitches (2 pcs) for open /close indication
  • Remote of wall / floor installations in scope of CE-marking
  • Latest technology for motorised and fusebox construction

ETPR fire dampers are available both in motorized and manual versions. Two microswitches are always as a standard for ETPR fire dampers both motorized and manual versions. ETPR fire dampers are installed on the wall or floor. Remote of wall/floor installation are in the scope of CE-marking. Installation of ETPR is easy and quick, because of factory made flange construction.

SL000148 ETPR-E-1-100-01-0
SL000147 ETPR-E-1-125-01-0
SL000530 ETPR-E-1-150-01-0
SL000145 ETPR-E-1-200-01-0
SL000144 ETPR-E-1-250-01-1
SL000143 ETPR-E-1-315-01-1
SL000142 ETPR-E-1-400-01-1
