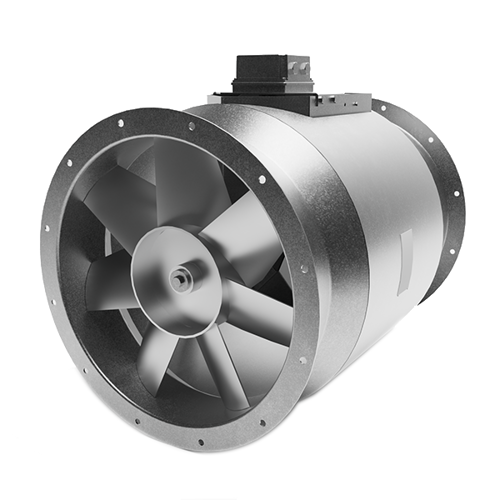

JM Bifurcated 200°C Axial Flow Fan

  • 400 mm to 1000mm Ø
  • Volume flow: up to 19 m3/s
  • Static pressure: up to 1000 Pa
  • Fan aerodynamic performance is certified to ISO 5801
  • Low installed noise levels
  • Operating temperature : 100°C to 200°C continuous
  • Hot dipped galvanised fan casings with integral flanges
  • Motor mounted outside the air stream
  • Available with IE2 motors as standard
  • Overheat protection (standard up to 1000mm Ø)
  • Motor protection IP55

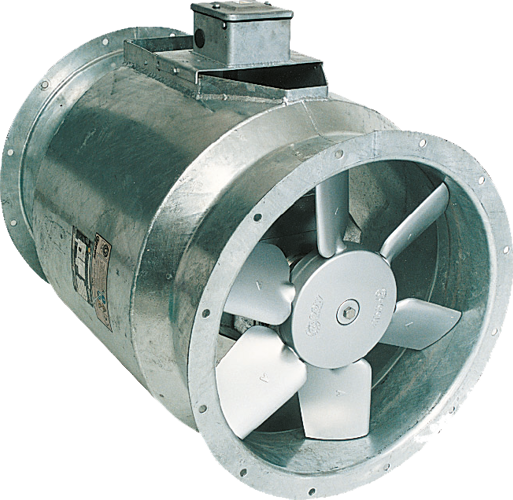

A birfurcated JM axial fan which keeps the motor protected from the pollutants passing through

A heavy duty ventilation solution

High-quality fan designed to withstand continuous hot temperatures and with a protected motor that does not get exposed to any particles within the airstream.
  • Motor mounted outside the air stream
  • Suitable for continuous operation for temperatures from 100°C to 200°C
  • Adjustable pitch impeller delivers precise performance

Sometimes it is required that a fan is able to operate at elevated temperatures continuously, or when there are particles or hazardous gases within the air stream that would damage a motor if it was unprotected. Bifurcated fans split the airflow around a motor tunnel which means that the motor is held outside of the airstream and therefore does not get exposed to what the air stream is carrying. Bifurcated fans are used as kitchen hood extract fans, keeping the motors protected from grease and elevated temperatures, also bifurcated fans are also used in industrial processes where air temperatures are continuously high (foundries for example) or where acids or abrasive particles are common in the airflow.

Our JM Bifurcated Axial Fan Product Range

PRODUCT REFERENCE EXAMPLE: BIF 40JML

  • 40 - denotes the fan impeller diameter in centimetres
  • JML - denotes fan type
JN245009 BIF 40JML 90L 3PH/2P 200DEGC IE3
JN245011 BIF 40JML 90S 3PH/4P 200DEGC IE3
JN275011 BIF 50JML 112M 3PH/2P 200DEG IE3
JN275012 BIF 50JML 90S 3PH/4P 200DEGC IE3
JN305003 BIF 63JML 100L 3PH/4P 200DEG IE3
JN839013 BIF 80JML 112M 3PH/4P 200DEG IE3
JN139425 BIF 100JML 132 3PH/4P 200DC IE3
Product Selection

Documents

  • Axial Fan O&M Manual
  • Bifurcated Fan (200°C Continuous Use) Specification Sheet
