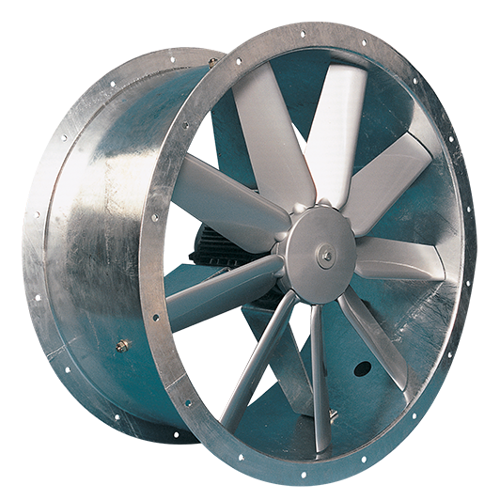

HT JM Aerofoil Axial Flow Fan
- 315-1600 mm diameter
- Volumes up to 186,500 m3/h (51.8 m3/s)
- Static pressures up to 2400 Pa
- Fans tested to ISO5801 and BS848
- High energy efficiency
- Low installed noise levels
- Motor protection IP55
- HT Certified by BSRIA for 400°C for 2 hours
High temperature axial fans for maximum protection
Our HT JM Axial Fan range is designed to run effectively at 400°C for two hours, giving plenty of time for evacuation in the event of a fire while day-to-day ventilation is provided efficiently and effectively.
JM aerofoil impellers are high-pressure die-cast of aluminium and consist of blades, hub and clamp plate. The JM impeller is manually adjustable through the full range of pitch angles.
- High Efficiency impeller design reduces SFP values and running costs
- Adjustable pitch impeller delivers precise performance
- Short or Long cased options provide installation flexibility
JM aerofoil impellers are high-pressure die-cast of aluminium and consist of blades, hub and clamp plate. The JM impeller is manually adjustable through the full range of pitch angles. All impeller components are X-rayed using real-time radiography, and examined to ASTM E-155, before machining to assure casting integrity and quality. Impellers are precision balanced as a fan assembly to minimize vibration levels and assure smooth operation.
Our JM Axial Fan Product Range
PRODUCT REFERENCE EXAMPLE: HT63JM/31/2/6/28
- 63 - denotes the fan impeller diameter in centimetres
- JM - denotes fan type
- 31 - denotes impeller hub diameter in centimetres
- 2 - denotes a nominal 2 pole speed
- 6 - denotes the number of blades
- 28 - denotes the pitch angle for the required duty
| BZ321202 | HT31JM/16/2/5/40 3 L 80 0.9kW 300/2 |
| BZ592201 | HT56JM/20/2/3 3 L 112 4.8kW 300/2 |
| BZ592203 | HT56JM/20/2/6/28 L 112M 300120 |
| BZ664205 | HT63JM/31/2/3/28 3 L 112M IE2 8.63kW 300/2 |
